DLM for UCM-NAWRU

[fioramanti]

Hi everybody,
I'm a newbie in RATS and I want to estimate the NAIRU (to be precise NAWRU) using a bivariate unobserved component model in SS form.

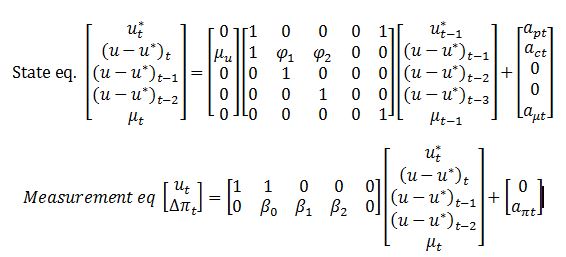

My SS form is like in the one in the figure, where u and deltapi are the observables (unemployment and change in wage inflation)
I went through fabiani-mestre and Laubach and Williams examples (togheter with RATS manuals), but, to be honest, I'm far away from understanding how DLM works.
Is there anyone available for helping me in coding this SS?
Thanks in advance.
M

[TomDoan]

There appear to be some typos in that. I assume you want a + between the first two components on the right-side. And is there supposed to be a 1 in the (2,1) element of the transition matrix? That looks like it should be a zero.

[fioramanti]

1. Yes, a plus is missing.
2. No, actual unemployment just equal to nawru plus un.gap.

[fioramanti]

2. I mean it is a zero.

[TomDoan]

In RATS options, the first 5-vector is your "Z". The 5 x 5 matrix is your "A". Your "F" matrix will be

1 0 0
0 1 0
0 0 0
0 0 0
0 0 1

The SW will (I assume) be a 3 x 3 diagonal matrix with three free variances. SV will be the symmetric matrix ||0.0|0.0,sigsqpi|| (or whatever you want to call that variance). C will be (since it's transposed)

1 0
1 beta0
0 beta1
0 beta2
0 0

The Z, A, SW, SV and C all have free parameters, so they'll have to be defined as FRML's of the proper type. For instance, something like:

Code: Select all

dec frml[vect] zf
frml zf = ||0.0,mu_u,0.0,0.0,0.0||
dec frml[rect] af
frml af = ||1.0 ,0.0, 0.0,0.0,1.0|$
            0.0,phi1,phi2,0.0,0.0|$
            0.0, 1.0, 0.0,0.0,0.0|$
            0.0, 0.0, 1.0,0.0,0.0|$
            0.0, 0.0, 0.0,0.0,1.0||

similarly for the other system matrices. You have to do a NONLIN to define the free parameters before you can create those matrices, and you'll have to come up with some process for getting guess values for them.

[fioramanti]

Many thanks Tom. I'll let you know if I succeed.
I'll try tomorrow.

M

[fioramanti]

Dear Tom,
Sorry, but I have some additional questions.
Attached the program I wrote following your instructions. No starting values yet.

Qs:
1. I get the error msg "DLM2. No Observations Produce Valid Output. Check Data and Initial Values". Is this simply related to the lack of starting values, meaning the code is (so far) correct?

2. Is the vector of observables (y) correctly coded ?

3. To give specific starting value, is it correct to:
compute beta0=anynumber, beta1=anynumber
NONLIN(PARMSET=mysv) beta0 beta 1
and then call among dlm options "parmset=mysv"?

4. Is it possible (how?) to constraint parameters to be "lowerbound<=estimatedparameter<=upperbound (i need it for the variances)?

Your help would be very much appreciated,
M

[TomDoan]

Dear Tom,
Sorry, but I have some additional questions.
Attached the program I wrote following your instructions. No starting values yet.

Qs:
1. I get the error msg "DLM2. No Observations Produce Valid Output. Check Data and Initial Values". Is this simply related to the lack of starting values, meaning the code is (so far) correct?

If you haven't given guess values to the variances (in particular), the model predicts zero variances, which means no computable likelihood.

2. Is the vector of observables (y) correctly coded ?

Yes.

3. To give specific starting value, is it correct to:
compute beta0=anynumber, beta1=anynumber
NONLIN(PARMSET=mysv) beta0 beta 1
and then call among dlm options "parmset=mysv"?

Yes.

4. Is it possible (how?) to constraint parameters to be "lowerbound<=estimatedparameter<=upperbound (i need it for the variances)?

You need to split each into multiple constraints, as in:

nonlin(parmset=constraints) vslo>=lowerslo vslo<=upperslo

then use parmset=mysv+constraints on the DLM to provide both the parameter list and the constraints.

BTW, on

dlm(y=yf, a=af, z=zf, f=ff, sw=swf, c=cf, sv=svf, type=smooth) 1965 2017

you want 1965:1 and 2017:1 on the range. (1965 and 2017 are numbers, not dates).

[fioramanti]

It seems to work now (it produces a graph which is the last line of the code), but I get "## DLM5. Probable Model Error. Diffuse prior was not reduced to zero rank" even if I use different "presample" options.
What does it mean?
Thanks
M

[fioramanti]

Sorry, with "presample=ergodic" no error msg.

I think it works now

Many many thanks,
M

[fioramanti]

Dear Tom,
I have another issue.
My code is:

Code: Select all

end(reset)
calendar(a) 1960:1
allocate 2017:1

open data WF2016.RAT
data(format=rats)

* Starting values
compute phi1=1.4203, phi2=-0.6216, mu=-0.0015, beta0=-0.0339, beta1=0.0560, beta2=-0.0272
compute vtr=0.1, vcyc=0.11, vslo=0.02, vpc=0.0004837
compute LB=0, UBvtr=0.1, UBvcyc=0.11, LBvslo=0.02, UBvslo=0.035, UBvpc=0.000816139288671913
nonlin(parmset=coeff) phi1 phi2 mu beta0 beta1 beta2
nonlin(parmset=vlist) vtr vcyc vslo vpc
nonlin(parmset=varia) vtr>=LB vtr<=UBvtr vcyc>=LB vcyc<=UBvcyc vslo>=LBvslo vslo<=UBvslo $
							 vpc>=LB vpc<=UBvpc

decl frml[rect] af
frml af = ||1.0 ,0.0, 0.0,0.0,1.0|$
            0.0,phi1,phi2,0.0,0.0|$
            0.0, 1.0, 0.0,0.0,0.0|$
            0.0, 0.0, 1.0,0.0,0.0|$
            0.0, 0.0, 0.0,0.0,1.0||

decl frml[vector] zf
frml zf = ||0.0,mu,0.0,0.0,0.0||

decl rect ff
compute ff=||1.0,0.0,0.0|$
				 0.0,1.0,0.0|$
				 0.0,0.0,0.0|$
				 0.0,0.0,0.0|$
				 0.0,0.0,1.0||

decl frml[symmetric] swf
frml swf = ||vtr, 0.0, 0.0|$
				 0.0,vcyc, 0.0|$
				 0.0, 0.0,vslo||

decl frml[rect] cf
frml cf = ||1.0,  0.0|$
				1.0,beta0|$
				0.0,beta1|$
				0.0,beta2|$
				0.0,  0.0||

decl frml[symmetric] svf
frml svf = ||0.0, 0.0|$
      		 0.0, vpc||

decl frml[vector] yf
frml yf =||u,ddw||

dlm(presample=ergodic,parmset=coeff+vlist+varia, print,y=tr(yf), a=af, z=zf, f=ff, sw=swf, $
c=cf, sv=svf, method=simplex) 1965:1 2017:1 xstates vstates

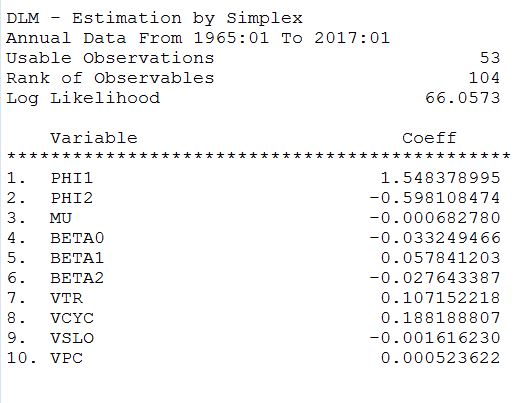

I have two problems here:
1. Variances constraints do not bite;
2. One of the variances is negative.


Ho can it be possible?
Thanks,
M

[TomDoan]

SIMPLEX, by it's nature, can't handle the constraints. Instead, you have to use METHOD=BFGS---see Section 4.4 in the User's Guide.

You have four fundamental shocks for two observables. The only requirement to compute the likelihood is that the predictive covariance matrix be positive-definite, which can be true even if some of the variances are (theoretically) negative. If that's the case, then the optimum is an edge solution, which requires using constrained estimation.

[fioramanti]

Indeed with bfgs all the variances are positive and constraints are satisfied.
Thanks,
M
