EGARCHSIMULATE.RPF









EGARCHSIMULATE.RPF is an example of simulating an EGARCH model for forecasting variance out-of-sample and/or producing a random sample from it. A companion (and almost identical) program EGARCHBOOTSTRAP.RPF does the same type of analysis, but with random simulations rather than bootstrapping.



This uses a sample data set of (old) exchange rates. The one being analyzed is the US$/Deutsche Mark exchange rate. The log returns are multiplied by 100 for improved performance of non-linear estimation. Note that this means that what you read off from the analysis are returns to 100 DM.


open data garch.asc

data(format=free,org=columns) 1 1867 bp cd dm jy sf

*

set dlogdm = 100*log(dm/dm{1})



This estimates a univariate GARCH model with asymmetry, saving the estimated variances in the series H. (Output)



garch(p=1,q=1,exp,asymmetric,hseries=h) / dlogdm



This pulls the coefficients out of the output.



compute gmu=%beta(1),c=%beta(2),a=%beta(3),b=%beta(4),d=%beta(5)


This pulls out the estimation range, and computes the standardized residuals.



compute gstart=%regstart(),gend=%regend()

*

set stdu = %resids/sqrt(h)



This sets the number of draws and number of out-of-sample steps:



compute ndraws=10000

compute nsteps=50



This is the out-of-sample range over which we will do the simulations.



compute bstart=gend+1,bend=gend+nsteps



We will be saving statistics on draws for H and for the data X over the BSTART to BEND range. For each of those, we need a VECTOR of size NDRAWS at each data point, so HDRAWS and XDRAWS will be type SERIES[VECT]. We also need series for the variance H and simulated values X to do the recursion in each simulation.



set h bstart bend = %na

set x bstart bend = %na

dec series[vect] hdraws xdraws

gset hdraws bstart bend = %zeros(ndraws,1)

gset xdraws bstart bend = %zeros(ndraws,1)



This is the draw loop. EGARCH is a recursion in H and the standardized residuals. This draws a standard Normal (into SU), computes the new value of H using the past values of H and STDU, computes a new value of X using the estimated mean plus a rescaled (by the standard deviation) SU, and saves the new draw for the Standard Normal for the next period. The SET instruction generates new values of H and X over the BSTART to BEND range. X is then accumulated into multiple period returns (the original X simulations are just simulated future single period returns) and saves the H and X values into the DRAW location in each of the HDRAWS and XDRAWS.


do draw=1,ndraws

   set stdu bstart bend = su=%ran(1.0),$

             h=exp(c+b*log(h{1})+a*abs(stdu{1})+d*stdu{1}),$

              x=gmu+sqrt(h)*su,su

   *

   * Replace x by its accumulation

   *

   acc x bstart bend

   do t=bstart,bend

      compute hdraws(t)(draw)=h(t)

      compute xdraws(t)(draw)=x(t)

   end do t

end do draw

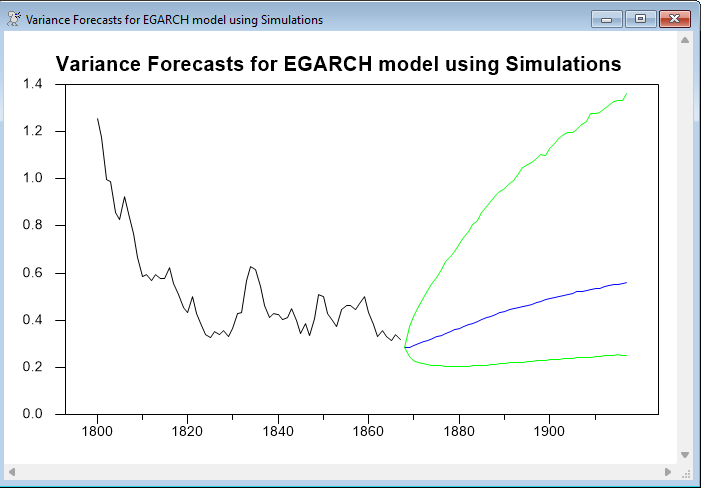

This extracts the .05 and .95 values for the H simulations for each out-of-sample entry, and graphs those.


set lower bstart bend  = %fractiles(hdraws(t),.05)(1)

set upper bstart bend  = %fractiles(hdraws(t),.95)(1)

set median bstart bend = %fractiles(hdraws(t),.50)(1)

*

graph(header="Variance Forecasts for EGARCH model using Simulations",min=0.0) 4

# h      1800 1867

# median 1868 1868+nsteps-1

# lower  1868 1868+nsteps-1 3

# upper  1868 1868+nsteps-1 3

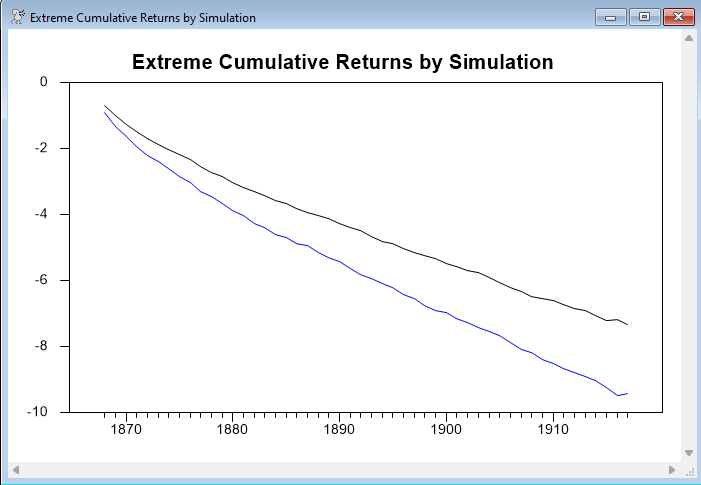

And this extracts and graphs the lower 10% and 5% cumulative returns (again, per 100 DM).



set lower10 bstart bend = %fractiles(xdraws(t),.10)(1)

set lower05 bstart bend = %fractiles(xdraws(t),.05)(1)

graph(header="Extreme Cumulative Returns by Simulation") 2

# lower10

# lower05



Full Program




open data garch.asc
data(format=free,org=columns) 1 1867 bp cd dm jy sf
*
set dlogdm = 100*log(dm/dm{1})
garch(p=1,q=1,exp,asymmetric,hseries=h) / dlogdm
*
* Pull out the coefficients for the EGARCH process
*
compute gmu=%beta(1),c=%beta(2),a=%beta(3),b=%beta(4),d=%beta(5)
compute gstart=%regstart(),gend=%regend()
*
set stdu = %resids/sqrt(h)
*
compute ndraws=10000
compute nsteps=50
*
compute bstart=gend+1,bend=gend+nsteps
set h bstart bend = %na
set x bstart bend = %na
dec series[vect] hdraws xdraws
gset hdraws bstart bend = %zeros(ndraws,1)
gset xdraws bstart bend = %zeros(ndraws,1)
do draw=1,ndraws
   set stdu bstart bend = su=%ran(1.0),$
             h=exp(c+b*log(h{1})+a*abs(stdu{1})+d*stdu{1}),$
              x=gmu+sqrt(h)*su,su
   *
   * Replace x by its accumulation
   *
   acc x bstart bend
   do t=bstart,bend
      compute hdraws(t)(draw)=h(t)
      compute xdraws(t)(draw)=x(t)
   end do t
end do draw
*
set lower bstart bend  = %fractiles(hdraws(t),.05)(1)
set upper bstart bend  = %fractiles(hdraws(t),.95)(1)
set median bstart bend = %fractiles(hdraws(t),.50)(1)
*
graph(header="Variance Forecasts for EGARCH model using Simulations",min=0.0) 4
# h      1800 1867
# median 1868 1868+nsteps-1
# lower  1868 1868+nsteps-1 3
# upper  1868 1868+nsteps-1 3
*
set lower10 bstart bend = %fractiles(xdraws(t),.10)(1)
set lower05 bstart bend = %fractiles(xdraws(t),.05)(1)
graph(header="Extreme Cumulative Returns by Simulation") 2
# lower10
# lower05


Output

GARCH Model - Estimation by BFGS

Convergence in    47 Iterations. Final criterion was  0.0000014 <=  0.0000100




Dependent Variable DLOGDM

Usable Observations                      1866

Log Likelihood                     -2065.1214




    Variable                        Coeff      Std Error      T-Stat      Signif

************************************************************************************

1.  Mean(DLOGDM)                 -0.027982045  0.016275592     -1.71926  0.08556624

2.  C                            -0.184511441  0.024287988     -7.59682  0.00000000

3.  A                             0.215085921  0.028043749      7.66966  0.00000000

4.  B                             0.967687031  0.009281720    104.25729  0.00000000

5.  D                            -0.017257427  0.012664163     -1.36270  0.17297778




Graphs
