Examples / ROLLINGCAUSALITY.RPF |
This is an example of a (bivariate) Granger causality test in a rolling window simulated data. Note that, by construction, there is no causality, and the process is stable across the entire range, so the apparent change in "causality" from the start to the end of the sample is spurious.
This sets up the model for
\(\begin{array}{l}{x_t} = .85{x_{t - 1}} + {\varepsilon _{xt}} \\ {y_t} = .80{y_{t - 1}} + .20{x_{t - 1}} + {\varepsilon _{yt}} \\\end{array}\)
which has Granger causality running from x to y, but not y to x. The tests below are for y to x causality.
It's simplest to do small models like this using FRML's.
dec series x y
frml xfrml x = .85*x{1}
frml yfrml y = .80*y{1}+.2*x{1}
compute [symm] sigma=||1.0|0.4,1.0||
group nocause xfrml>>x yfrml>>y
This generates 500 data points. The first (needed for the one lag in the model) is initialized to zero so the (Gaussian) simulation starts in period 2. We won't use the first 100 generated data points in any of the subsequent analysis.
set x 1 500 = 0.0
set y 1 500 = 0.0
simulate(model=nocause,from=2,to=500,cv=sigma)
This does the rolling tests with a estimation span of 100 entries. The loop index TIME chooses the end of the window. The test statistic generated by the window ending at entry TIME is saved into the series CAUSETESTS at that entry.
compute nspan=100
compute nlags=3
*
do time=200,500
linreg(noprint) x time-nspan+1 time
# constant x{1 to nlags} y{1 to nlags}
exclude(noprint)
# y{1 to nlags}
compute causetests(time)=%cdstat
end do time

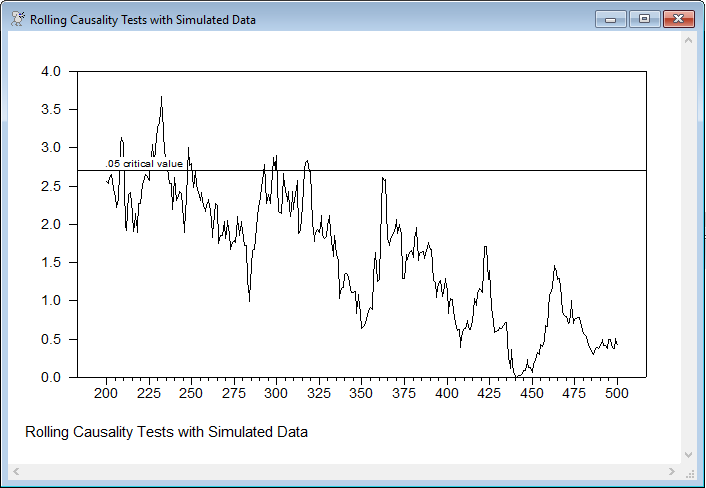

This graphs the causality tests with a grid line at the .05 critical value for the F-statistic. (It also uses GRTEXT to add the description to the line—that requires enclosing the two graph operations in an SPGRAPH.)
compute cv05=%invftest(.05,nlags,%ndf)
spgraph(footer="Rolling Causality Tests with Simulated Data")
graph(vgrid=||cv05||)
# causetests
grtext(y=cv05,entry=200,align=left,valign=bottom) ".05 critical value"
spgraph(done)
This does the regression over the full sample, full sample causality test and stability test. In practice, this should probably have been done first before doing a "rolling" analysis on an apparently (from the test) stable regression.
linreg x 101 *
# constant x{1 to nlags} y{1 to nlags}
exclude(title="Full sample causality test")
# y{1 to nlags}
@regstabtest
Full Program
seed 530393
dec series x y
frml xfrml x = .85*x{1}
frml yfrml y = .80*y{1}+.2*x{1}
compute [symm] sigma=||1.0|0.4,1.0||
group nocause xfrml>>x yfrml>>y
*
* This generates 500 data points and doesn't use the first 100 in any of
* the subsequent analysis.
*
set x 1 500 = 0.0
set y 1 500 = 0.0
simulate(model=nocause,from=2,to=500,cv=sigma)
*
set causetests = %na
*
* Window span
*
compute nspan=100
compute nlags=3
*
do time=200,500
linreg(noprint) x time-nspan+1 time
# constant x{1 to nlags} y{1 to nlags}
exclude(noprint)
# y{1 to nlags}
compute causetests(time)=%cdstat
end do time
*
* For comparison, get the .05 critical value for the test
*
compute cv05=%invftest(.05,nlags,%ndf)
spgraph(footer="Rolling Causality Tests with Simulated Data")
graph(vgrid=||cv05||)
# causetests
grtext(y=cv05,entry=200,align=left,valign=bottom) ".05 critical value"
spgraph(done)
*
* Regression over the full sample, full sample causality test and
* stability test.
*
linreg x 101 *
# constant x{1 to nlags} y{1 to nlags}
exclude(title="Full sample causality test")
# y{1 to nlags}
@regstabtest
Graphs
Output
Linear Regression - Estimation by Least Squares
Dependent Variable X
Usable Observations 400
Degrees of Freedom 393
Centered R^2 0.7555190
R-Bar^2 0.7517865
Uncentered R^2 0.7744024
Mean of Dependent Variable -0.609150354
Std Error of Dependent Variable 2.108121670
Standard Error of Estimate 1.050287998
Sum of Squared Residuals 433.52021748
Regression F(6,393) 202.4145
Significance Level of F 0.0000000
Log Likelihood -583.6702
Durbin-Watson Statistic 1.9920
Variable Coeff Std Error T-Stat Signif
************************************************************************************
1. Constant -0.084909568 0.057561569 -1.47511 0.14098400
2. X{1} 0.814474236 0.054717064 14.88520 0.00000000
3. X{2} 0.077385887 0.068523074 1.12934 0.25944305
4. X{3} -0.003803219 0.056427411 -0.06740 0.94629738
5. Y{1} 0.079625050 0.056878842 1.39991 0.16233027
6. Y{2} -0.112254392 0.071012075 -1.58078 0.11473305
7. Y{3} 0.008531989 0.053921462 0.15823 0.87435689
Full sample causality test
Null Hypothesis : The Following Coefficients Are Zero
Y Lag(s) 1 to 3
F(3,393)= 1.32852 with Significance Level 0.26466512
Hansen Stability Test
Test Statistic P-Value
Joint 2.09131776 0.05
Variance 0.06680167 0.76
Constant 0.48563061 0.04
X{1} 0.10685158 0.53
X{2} 0.09467980 0.59
X{3} 0.35975192 0.09
Y{1} 0.24542486 0.19
Y{2} 0.29445031 0.14
Y{3} 0.21454996 0.23
